Compatible with mainstream operating systems and embedded operatingsystems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.
Supports multi-point USB interface drive-free capacitive touch screen
Support OSD control buttons to help users adjust the LCD screen to the
best state for different appl ication environments， OSD menu can be switched
in Chinese and Engl ish。
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

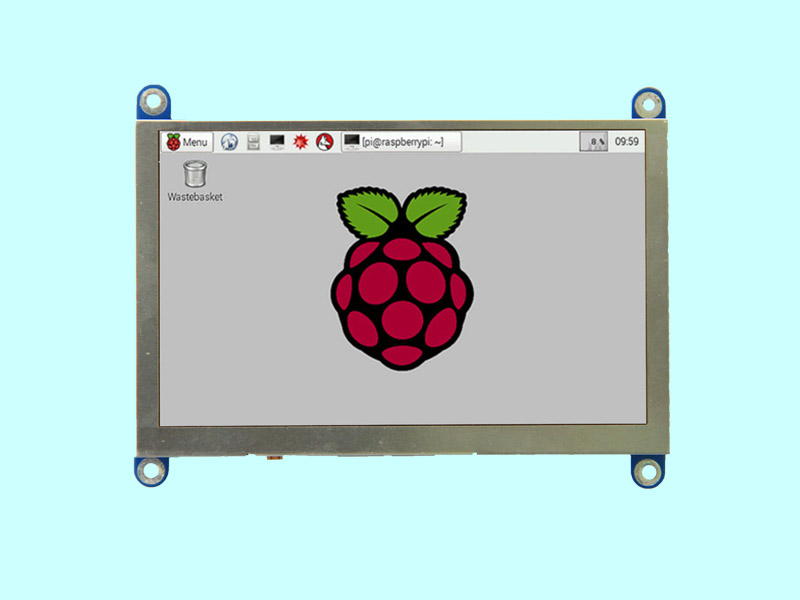

| 5.0寸TFT/800*480分辨率/接口/樹莓派/LCM-TFT050T2SVHDVN19M | TFT Module | 800x480 |
|
120.7x91.3 | 5.0 | 5.0 | 110.0*68.0 | Full View | HI Type C | VGA | Anti-static ESD 8KV | -20~70℃ | 5.0V | |||
| 7 inch TFT/1024*600Resolution/VGA//HT-H2660 | TFT Module | 1024x600 |
|
164.9x100x5.5 | 7.0 | 7.0 | 154.21x85.92 | Full View | 850cd/m2 | VGA | Anti-static ESD 8KV | -20~70℃ | 12V | 2660 | ||
| 5.6 inch MIPI interface TFT Module | 640 * 480 resolution | TFT056A1VGM2N30F | TFT Module | 640x480 |
|
126.5x100.0x9.5 | 5.6 | 5.6 | Full view | 300cd/m2 | FPC-30PIN | MIPI | -20~70℃ | 5.0V | ||||

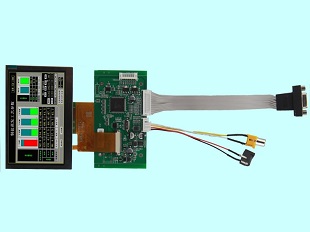

| 4.3 inch TFT with VGA driver board | AV video driver board | TFT+VGA | 800x480 |
|
105.5x67.2x2.95 | 4.3 | 4.3 | 500cd/m2 | VGA | -30~80 | 12.0V | ||||||
| 4.3 inches TFT LVDS | TFT+LVDS | 800x480 |
|
105.5x67.2x4.0 | 4.3 | 4.3 | 95.04x53.86 | FULL | 20PIN | LVDS | Anti-static ESD 8KV | -40~80℃ | 3.0V | |||
| 7.0 inch TFT module VGA/AV interface LCD display module/HTM070A05 | TFT Module | 800x480 |
|
200x126.6x10.5 | 7.0 | 7.0 | 153.84x85.632 | 6H | 400cd/m2 | VGA | VGA/AV | -20~70℃ | 12v | |||
| 5.0 inches 8 color TFT |800*480Image resolution/HTM050A01 | TFT-LCM | 800x480 |
|
143.5x80.9x13.5 | 5.0 | 5.0 | 110.8x67.8 | 12H | MCU | 8 color | -20-70℃ | 5.0v | NT7336 | |||

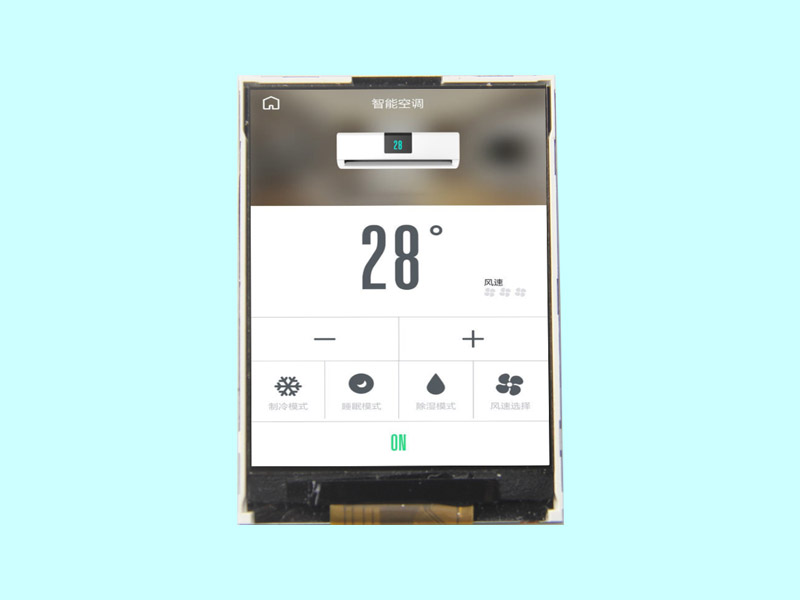

| 2.4''TFT/240*320Image resolution/MIPI/HTM24058A-MIPI | TFT Module | 240x320 |
|
60.5x43.0x3.2 | 2.4 | 2.4 | 6H | 400cd/m2 | MIPI | -20~70℃ | 2.8v | |||||
| 7.0 inch TFT MIPI interface_HTM070F92A-MIPI | TFT LCM | 800x480 |
|
164.9x100.0x5.7 | 7.0 | 7.0 | 153.84x85.632 | 12H | 400cd/m2 | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0v |
