Compatible with mainstream operating systems and embedded operatingsystems such as DOS/Windows98/2000/XP/win7/win8/win10/Embedded/Linux.
Supports multi-point USB interface drive-free capacitive touch screen
Support OSD control buttons to help users adjust the LCD screen to the
best state for different appl ication environments， OSD menu can be switched
in Chinese and Engl ish。
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

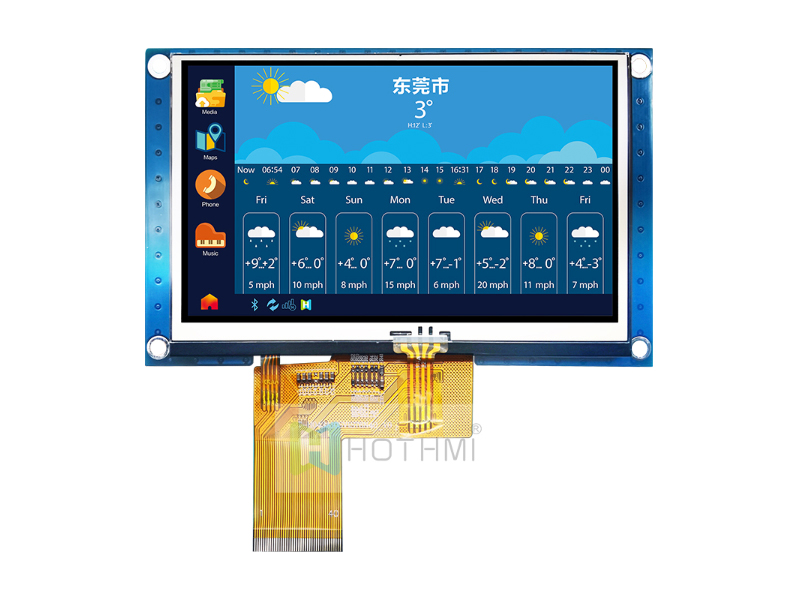

| 4.3-inch IPS full viewing angle 800x480px TFT LCD color LCD display optional touch screen/LCM-TFT043T3 | TFT Module | 800x480 |
|
121.9x74.7x6.35 | 4.3 | 4.3 | 95.04x53.86 | 400cd/m2 | 40pin | TTL | Anti-static ESD 8KV | 3.3V | ST7262 | |||

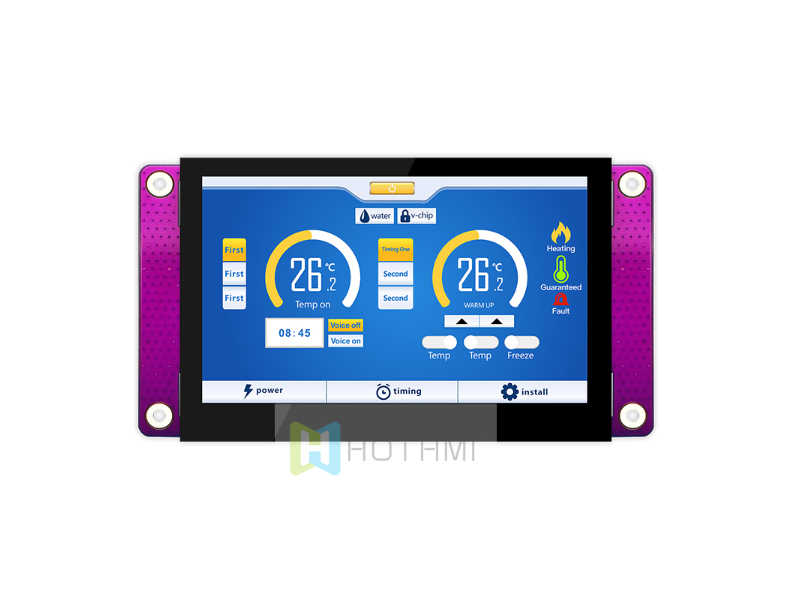

| 4.3 inch 800x480px IPS full-viewing TFT LCD color LCD display/optional touch screen/HTM-TFT043C03-LVDS | TFT Module | 800x480 |
|
126.5x68.2x8.05 | 4.3 | 4.3 | 95.04x53.86 | Full view | 500cd/m2 | 40pin | LVDS | Anti-static ESD 8KV | -40~80℃ | 3.3V | ST7262 | |

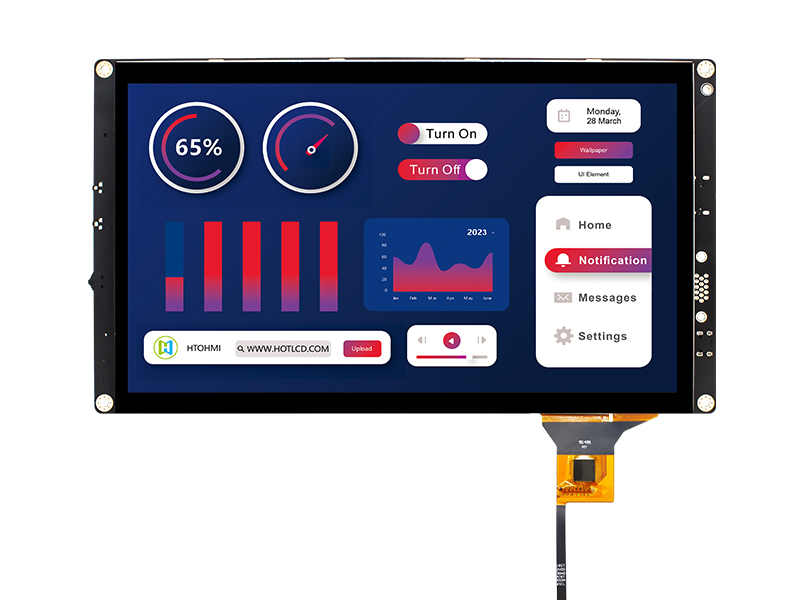

| 10.1 inch high-brightness color LCD display/IPS full viewing angle/1280x800 dot matrix/capacitive touch screen/TFT-H101D13WXIWZKC40 | TFT LCD | 1280x800 |
|
229.46x149.1 | 10.1 | 10.1 | 216.96x135.6 | Full view | 800cd/m2 | 40pin | LVDS | Anti-static ESD 8KV | -20~70℃ | 3.3V | T.B.D | |

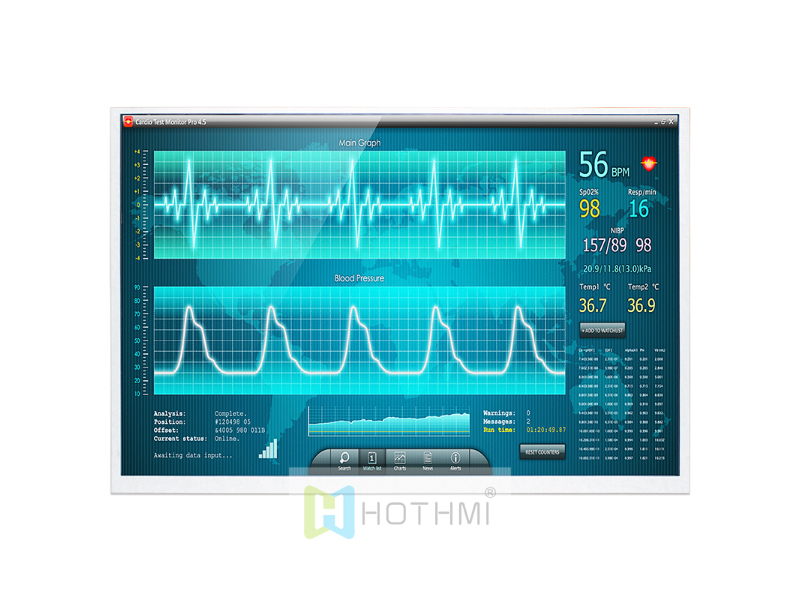

| 10.1 inch high-brightness color LCD display/IPS full viewing angle/1280x800 dot matrix/can be equipped with touch screen/LVDS/TFT-H101D13W XIWZKN40 | TFT LCD | 1280x800 |
|
229.46x149.1x4.7 | 10.1 | 10.1 | 216.96x135.6 | Full view | 1000cd/m2 | 40pin | LVDS | Anti-static ESD 8KV | -20~70℃ | 3.3V | T.B.D | |

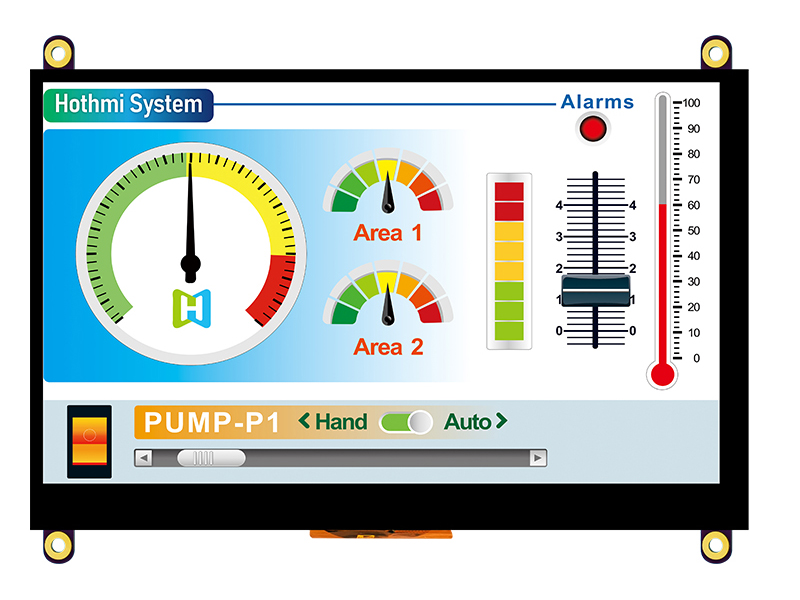

| 7.0 inch 1024x600 px IPS Capacitive usb TFT LCD Module HTM-TFT070A7_UCTP | driver-free module | 1024x600 |
|
166.1x101.2x10.1 | 7.0 | 7.0 | 154.21x85.92 | Full view | 430cd/m2 | VGA | With capacitive touch function | -20~70℃ | 9V～24V | |||

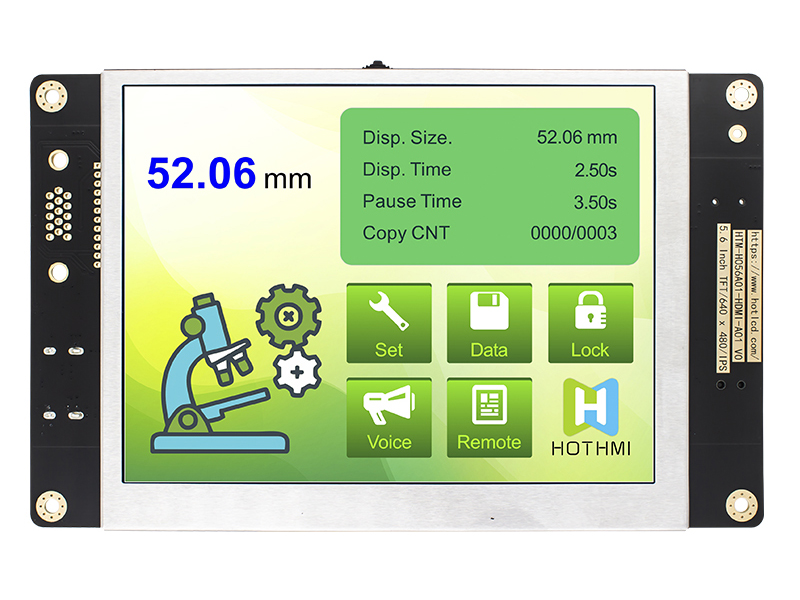

| 5.6 inch IPS 640x480 px TFT LCD module with driver board for Raspberry Pi HTM-H056A01-A01 | TFT Module | 640x480 |
|
163.5x102x20.7 | 5.6 | 5.6 | 112.9x84.67 | Full view | 200cd/m2 | VGA | Anti-static ESD 8KV | -10~60℃ | 9V～12V | |||

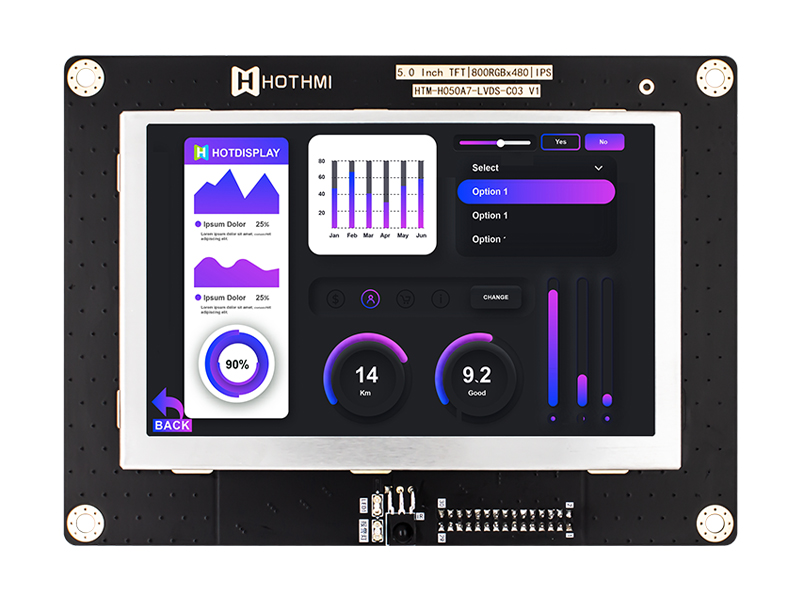

| 5.0 Inch IPS 800x480 Wide Temperature TFT LCD Module Display Panel LVDS HTM-H050A7-LVDS-C03 | TFT Module | 800x480 |
|
148x107 | 5.0 | 5.0 | 108x64.8 | Full view | 800cd/m2 | 30pin | LVDS | Anti-static ESD 8KV | -30~80℃ | 3.3V | ST7262 | |

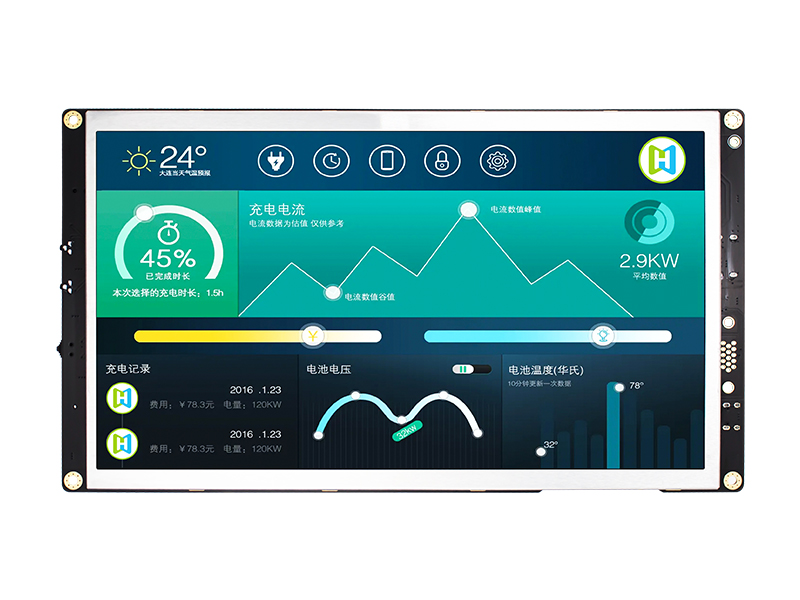

| 10.1 Inch IPS 1024x600 capacitive touch TFT LCD Module Display Sunlight Readable With Raspberry Pi HTM-H101A9-A05C | TFT Module | 1024x600 |
|
258x148x6.5 | 10.1 | 10.1 | 225.4x127.9 | Full view | 1000cd/m2 | VGA | Anti-static ESD 8KV | -20~70℃ | 12.0V | T.B.D | ||

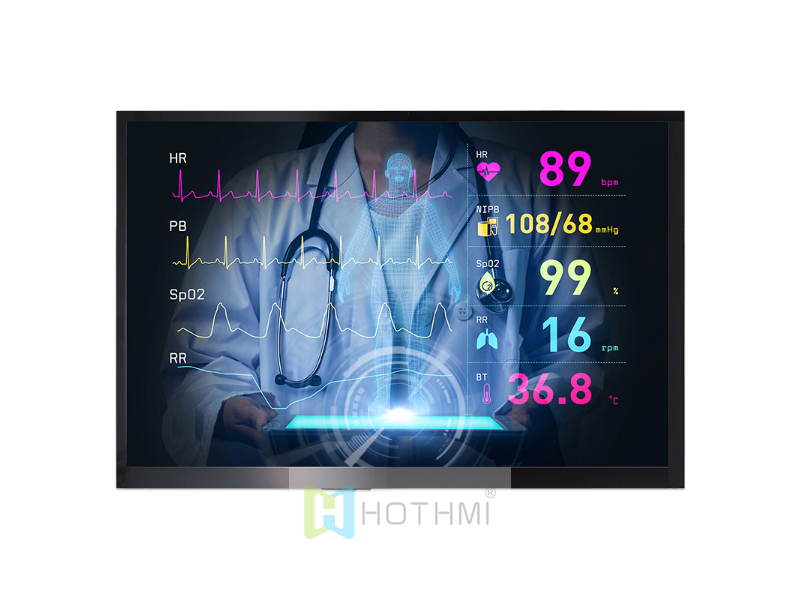

| 10.1 Inch IPS 1024x600 TFT LCD Module Display Sunlight Readable With Raspberry Pi HTM-H101A9--A05 | driver-free module | 1024x600 |
|
258x148x6.5 | 10.1 | 10.1 | 225.4x127.9 | Full view | 1300cd/m2 | VGA | Anti-static ESD 8KV | -20~70℃ | 12.0V | T.B.D | ||

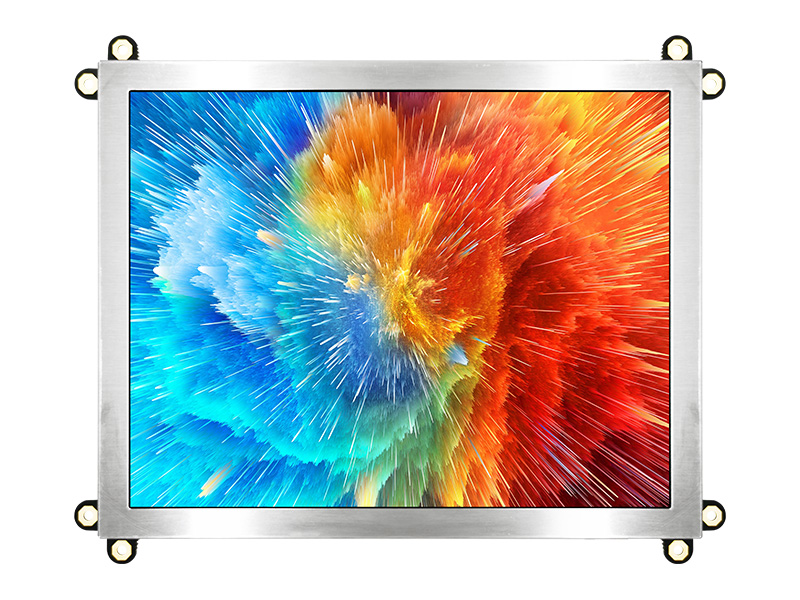

| 8.0 inch TFT LCD 1024x768 Sunlight Readable For Applications Industrial Display HTM-H080A2-A03 | TFT Module | 1024x768 |
|
203x161x23.5 | 8.0 | 8.0 | 163x122.5 | 12H | 800cd/m2 | 22pin | VGA | Anti-static ESD 8KV | -20~70℃ | 12.0V |
