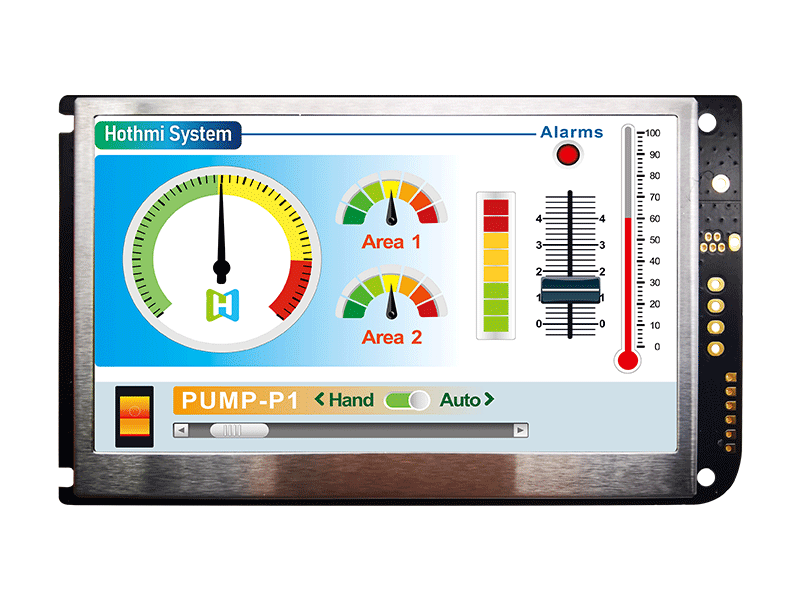

The intelligent serial screen (resistive touch) is a new series of products introduced by Xin Hongtai HOTLCD. It has a wide range of display sizes. The products are widely used in various industrial industrial control fields with excellent product performance.
All display and operation of Xin Hongtai intelligent LCD module are based on the variable configuration file preset in the module. When using, the interface designed by the computer can be switched into the intelligent display module through the interface to switch and refresh between different display interfaces.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

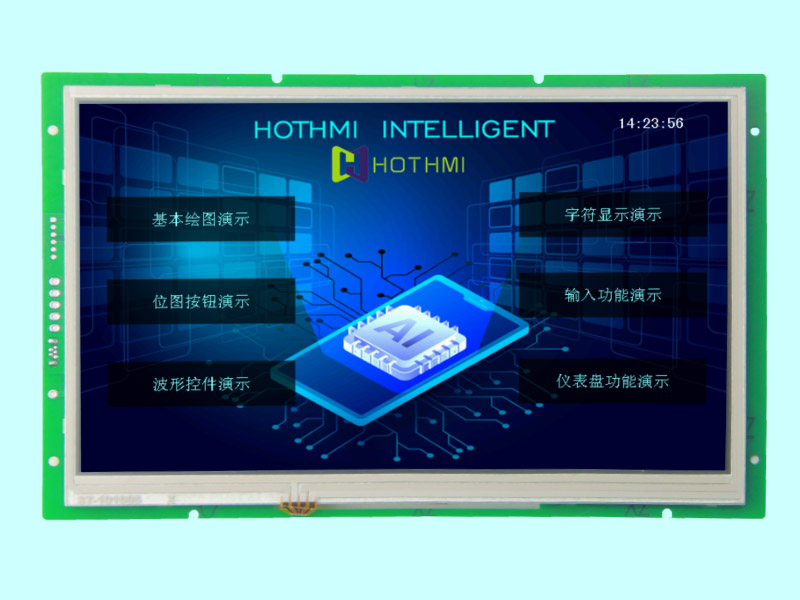

| 10.1 inch TFT 1024*600 Intelligent serial screen/resistive touch/configuration screen EzUIH101 | TFT Module | 1024x600 |
|
251.0x153.0x10.0 | 10.1 | 10.1 | 222.72x125.28 | 6H | 300cd/m2 | USB+RS232 | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||

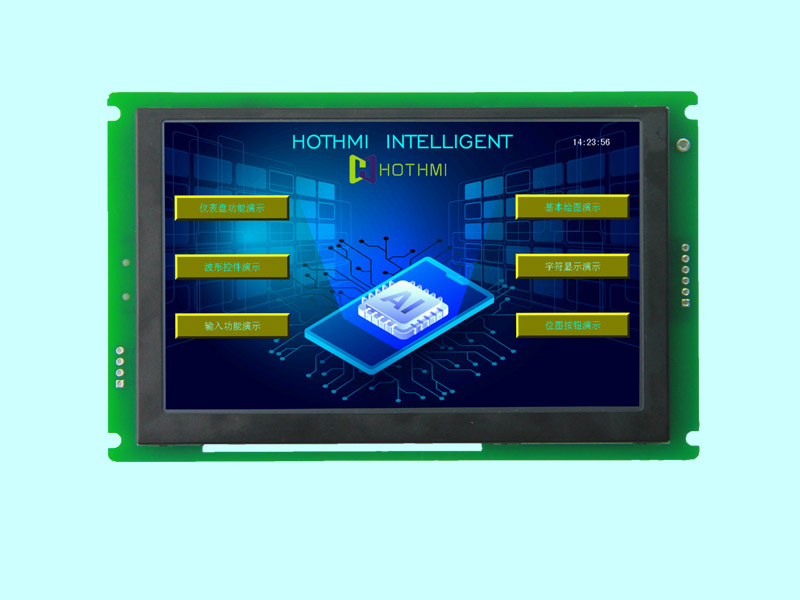

| 5.0 inch TFT 800*480 Intelligent serial screen/resistive touch/configuration screen EzUIH050D | TFT LCM | 800x480 |
|
136.0x85.0x12.0 | 5.0 | 5.0 | 108.0x64.8 | USB+RS232 | UART/RS232 | -20~70℃ | 5.0V | |||||
| 4.3inch serial port screen | 480 * 272 resolution | resistance touch | configuration screen |EzUIH043 | TFT Module | 480x272 |
|
117.5×73.2×10.0 | 4.3 | 4.3 | 95.04×53.856 | 6H | 300cd/m2 | USB+RS232 | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0v | ||
| 4.3 inch TFT 800x480 Intelligent serial screen/resistive touch/configuration screen EzUIH043D | TFT Module | 800x480 |
|
117.5×73.2×10.0 | 4.3 | 4.3 | 95.04×53.856 | Full View | 500cd/m2 | USB+RS232 | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||

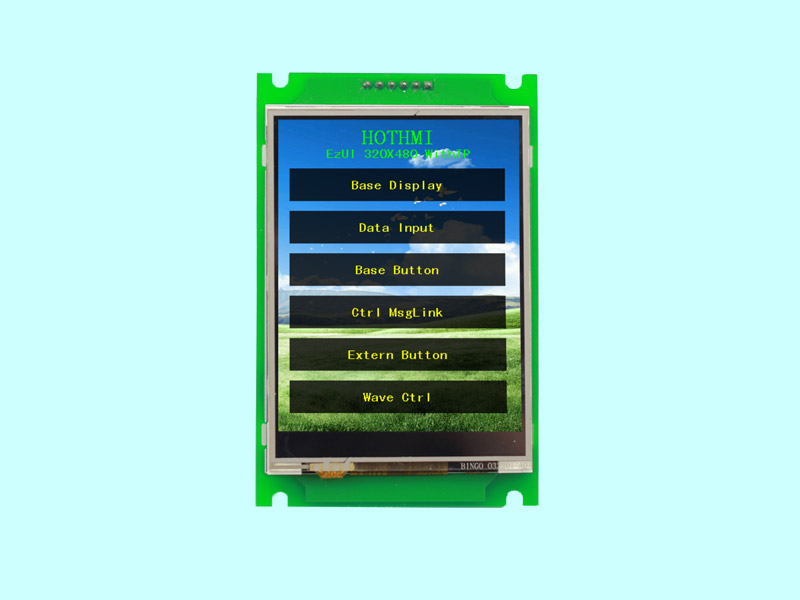

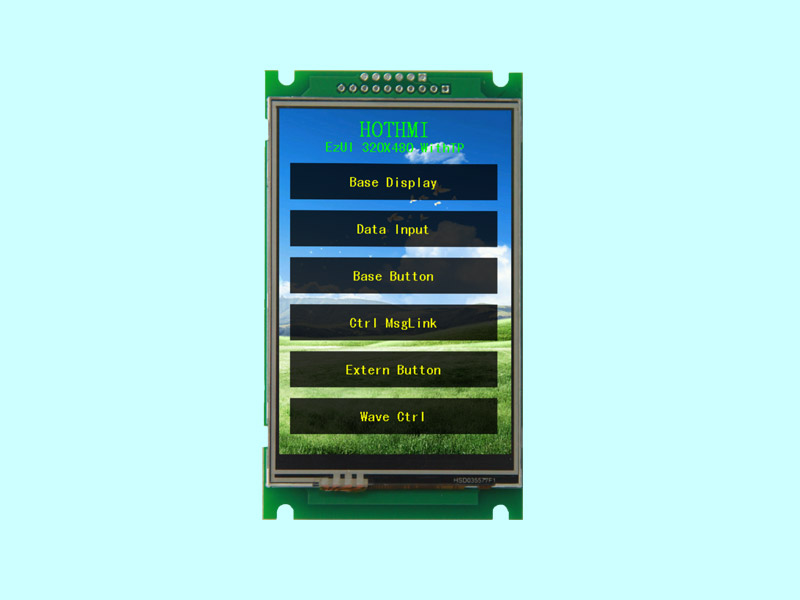

| 3.5“TFT 320*480Intelligent serial screen/resistive touch/configuration screen EzUILet035 | TFT Module | 320x480 |
|
57.0x98.0x8.0 | 3.5 | 3.5 | 48.96x73.44 | 6H | 200cd/m2 | USB+RS232 | UART/RS232 | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||
| 2,8 inch TFT EzUILet028 | TFT Module | 240x320 |
|
54.0x88.0x6.0 | 2.8 | 2.8 | 43.2x57.6 | 6H | 400cd/m2 | UART/RS232 | TTL | -20~70℃ | 3.3v |
