The intelligent serial screen (resistive touch) is a new series of products introduced by Xin Hongtai HOTLCD. It has a wide range of display sizes. The products are widely used in various industrial industrial control fields with excellent product performance.
All display and operation of Xin Hongtai intelligent LCD module are based on the variable configuration file preset in the module. When using, the interface designed by the computer can be switched into the intelligent display module through the interface to switch and refresh between different display interfaces.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

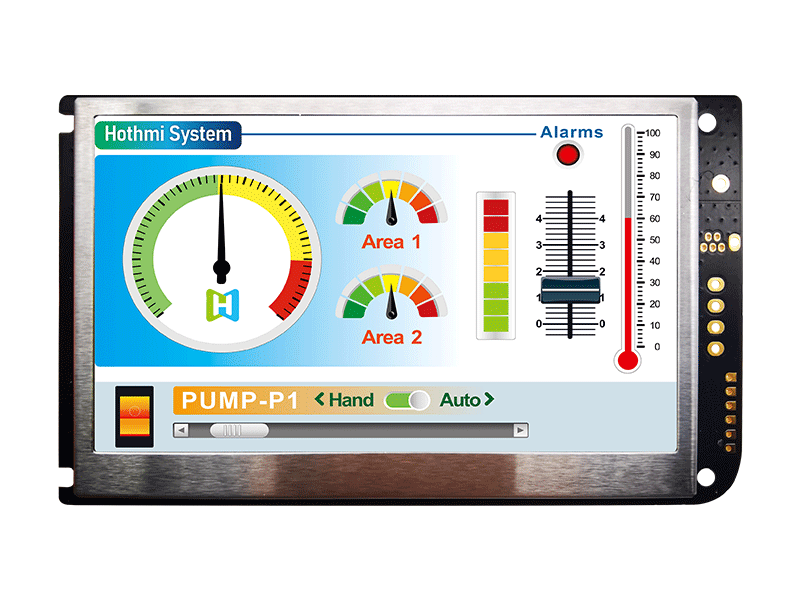

| 4.3-inch UART smart serial screen/480x272 resolution/IPS full-view TFT with board module HTM-H043A10-A5-UART | TFT Module | 480X272 |
|
122.5x73.2x5.0 | 4.3 | 4.3 | 95.04x53.86 | IPS | 500cd/m2 | Smart UART with board, pins assembled | UART | Anti-static ESD 8KV | -20~70℃ | 5.0V | ||

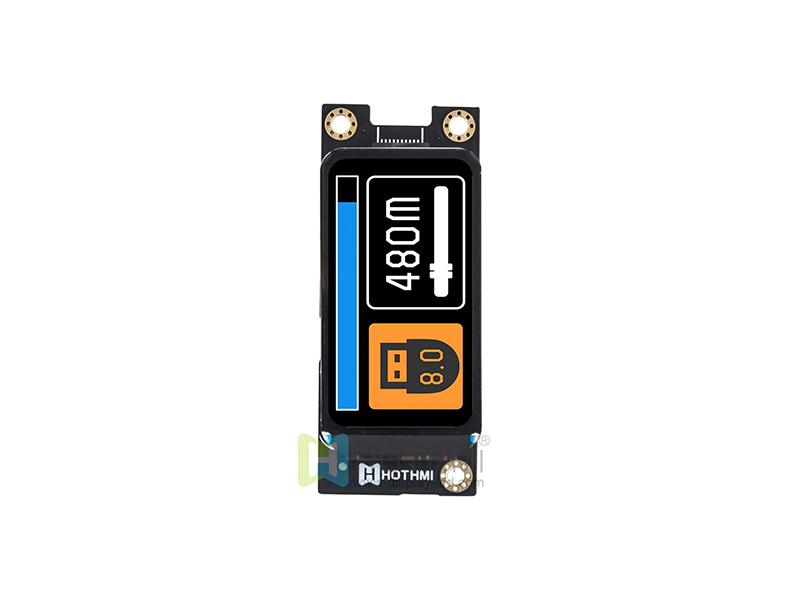

| 1.5 inch 172x320/Smart IPS Color TFT Display/RS485 Interface Serial Port Display HTM-H015A06-485-A01 | TFT Module | 172x320 |
|
19.65x48.0x9.2 | 1.5 | 1.5 | 14.65x32.83 | IPS | 300cd/m2 | 6pin | RS485 | IPS | -20~70℃ | 5.0V | ST7796 | |

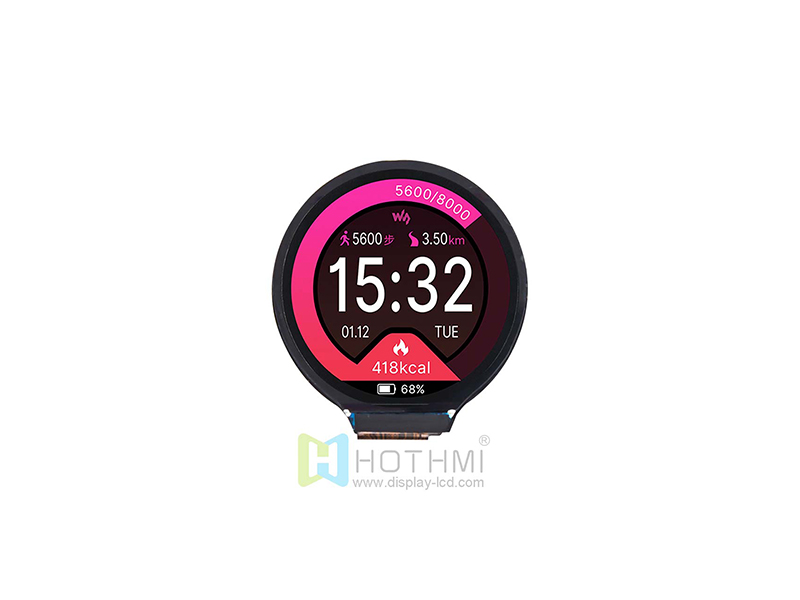

| 1.3-inch 240X240 round TFT color display module/IPS panel smart serial port display HTM-H013A6-UART-A02 | UART board module | 240x240 |
|
35.6X37.74X6.31 | 1.3 | 1.3 | 32.4X32.4 | IPS | 300cd/m2 | 4pin | UART | Anti-static ESD 8KV | -20~70℃ | +3.3 V | ST7796 | |
| 3.5-inch 320x480 UART sunlight readable capacitive touch intelligent serial port display HTM-H035A12-A9C-UART | UART board module | 320x480 |
|
57.0x98.0x7.35 | 3.5 | 3.5 | 48.96x73.44 | IPS | 48.96x73.44 | 6pin | UART | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7796 | |

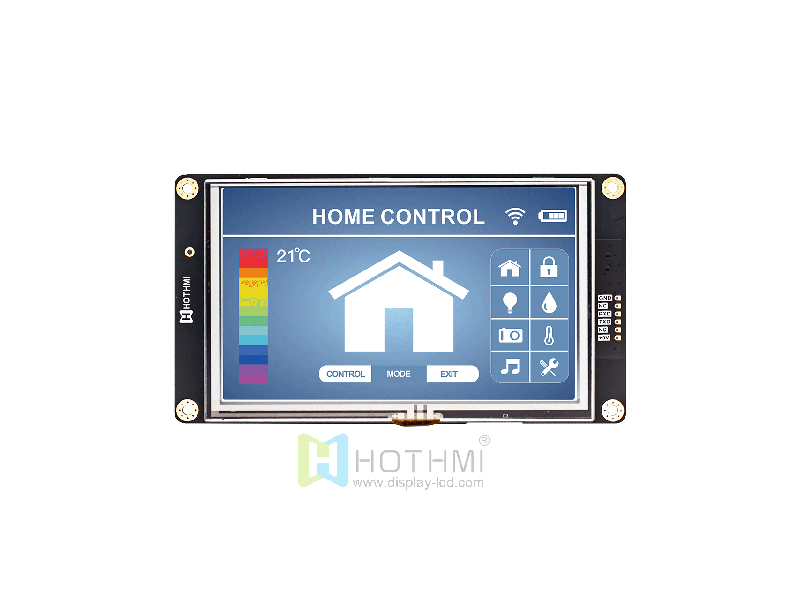

| 5.0-inch IPS full-view resistive touch screen module/intelligent UART display module/800x480 resolution HTM-H050A1-UART-A5R | TFT Module | 480x800 |
|
143.0x80x9.6 | 5.0 | 5.0 | 108.0x64.8 | IPS | 600cd/m2 | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0V | |||

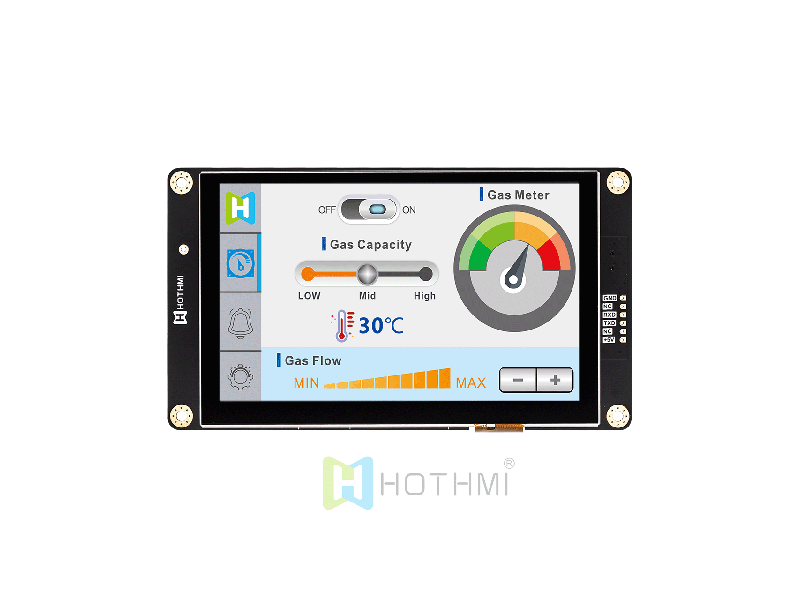

| 5.0-inch HMI Smart UART 800x480 IPS Full Viewing Angle Display/Capacitive Touch TFT LCD Display Module HTM-H050A1-UART-A5C | TFT Module | 800X480 |
|
143.0x80x9.9 | 5.0 | 5.0 | 108.0x64.8 | IPS | 600cd/m2 | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0V | |||
| 5.0 inch IPS TFT LCD display module/800x480 smart UART TFT LCD/HMI TFT HTM-H050A1-UART-A5 | TFT Module | 800X480 |
|
143.0x80x8.1 | 5.0 | 5.0 | 108.0x64.8 | IPS | 700cd/m2 | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0V | |||

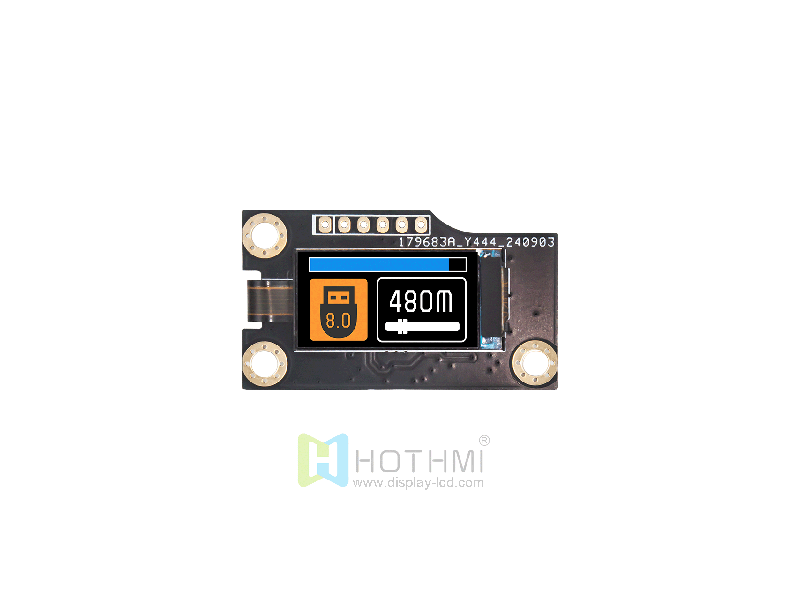

| 0.96 inch mini TFT LCD display module/80*160 resolution/EzUILet/UART(TTL) interface/HTM-H010A1-UART-A01 | TFT Module | 80x160 |
|
24.0x42.0x4.9 | 0.96 | 0.96 | 10.8x21.7 | IPS | 300cd/m2 | UART | Anti-static ESD 8KV | -20~70℃ | 5.0V | ST7735S | ||

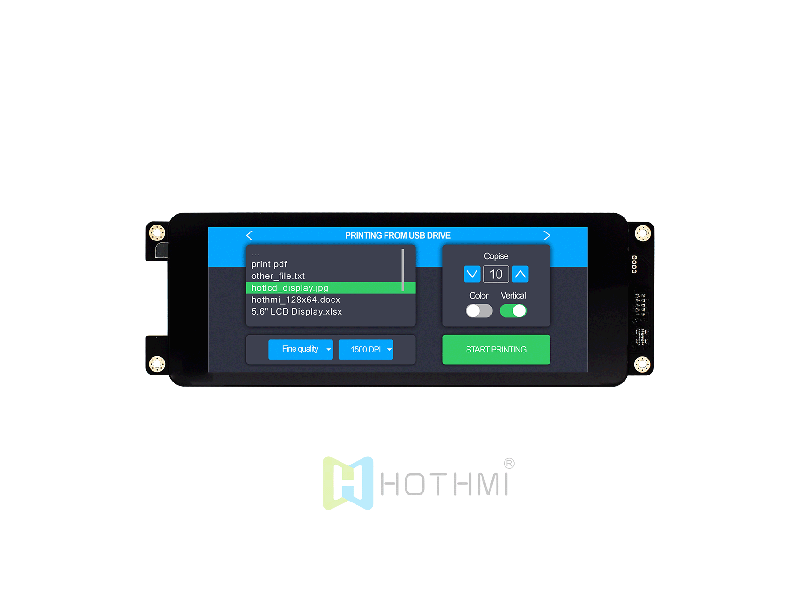

| 6.86 inch 480x1280 TFT LCD display module URAT intelligent serial port screen capacitive touch HMI IPS/HTMH068A04-UART | TFT Module | 480x1280 |
|
73.5x210.0x.9.25 | 6.86 | 6.86 | 60.192x160.512 | Full view | 800cd/m2 | FPC-10PIN | UART | With capacitive touch function | -20~70℃ | 5.0V | T.B.D | |

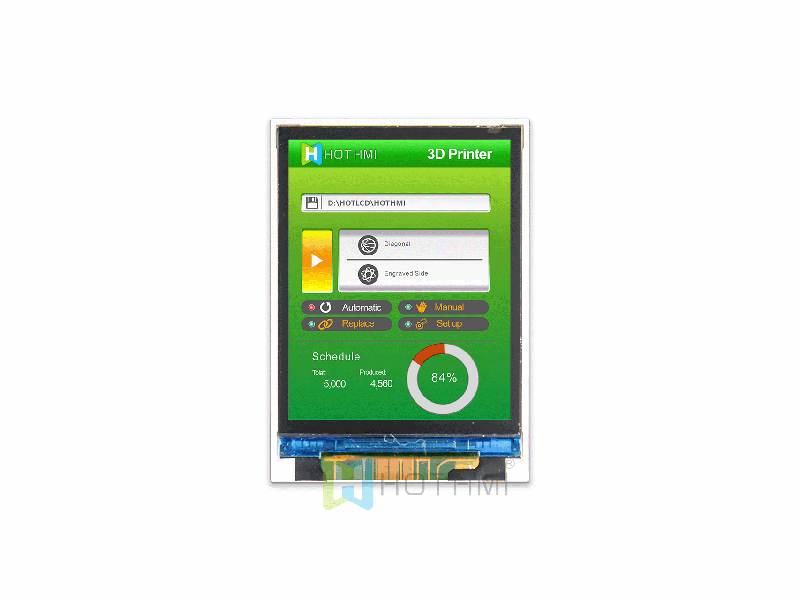

| 2.0 inch smart serial screen 240x320 pixels IPS UART HMI smart serial screen TFT display module readable under sunlight/LCM-EU020T61NL | TFT LCD | 240x320 |
|
36.0x52.0x5.3 | 2.0 | 2.0 | 30.6x40.8 | Full view | 750cd/m2 | FPC-5PIN | UART | Anti-static ESD 8KV | -10~60℃ | 5.0V | T.B.D |
