中文

TFT display COG display screen TFT LCD Modules(with board) Graphic lattice LCD module Character lattice LCD module Pen Segment LCD Series Touch screen \ Backlight \ Other accessories OLED | e-PAPER

Location：Home > Product Center > Standard COG Lattice Display Screen

Standard COG Lattice Display Screen

COG display: not only thin, but also low power consumption.

COG display is the first batch of Xinhongtai HOTLCD since its successful development and production in 2004. It has been the main product of the company for 15 years and is also a kind of LCD module favored by many customers.

So far, hundreds of standard COG displays ranging from 64*48 dot matrix to 320*240 dot matrix have been developed for customers to choose. In particular, there are more than one hundred different sizes of 128*64 dot matrix.

Back

Screening results

Model	Product type	Show contents	Outline size (mm)	Horizon (mm)	Display size mm/inch	Point spacing mm	Visual angle	Brightness	Pin	Interface	Instructions	Working temperature	Voltage	Driver chip model

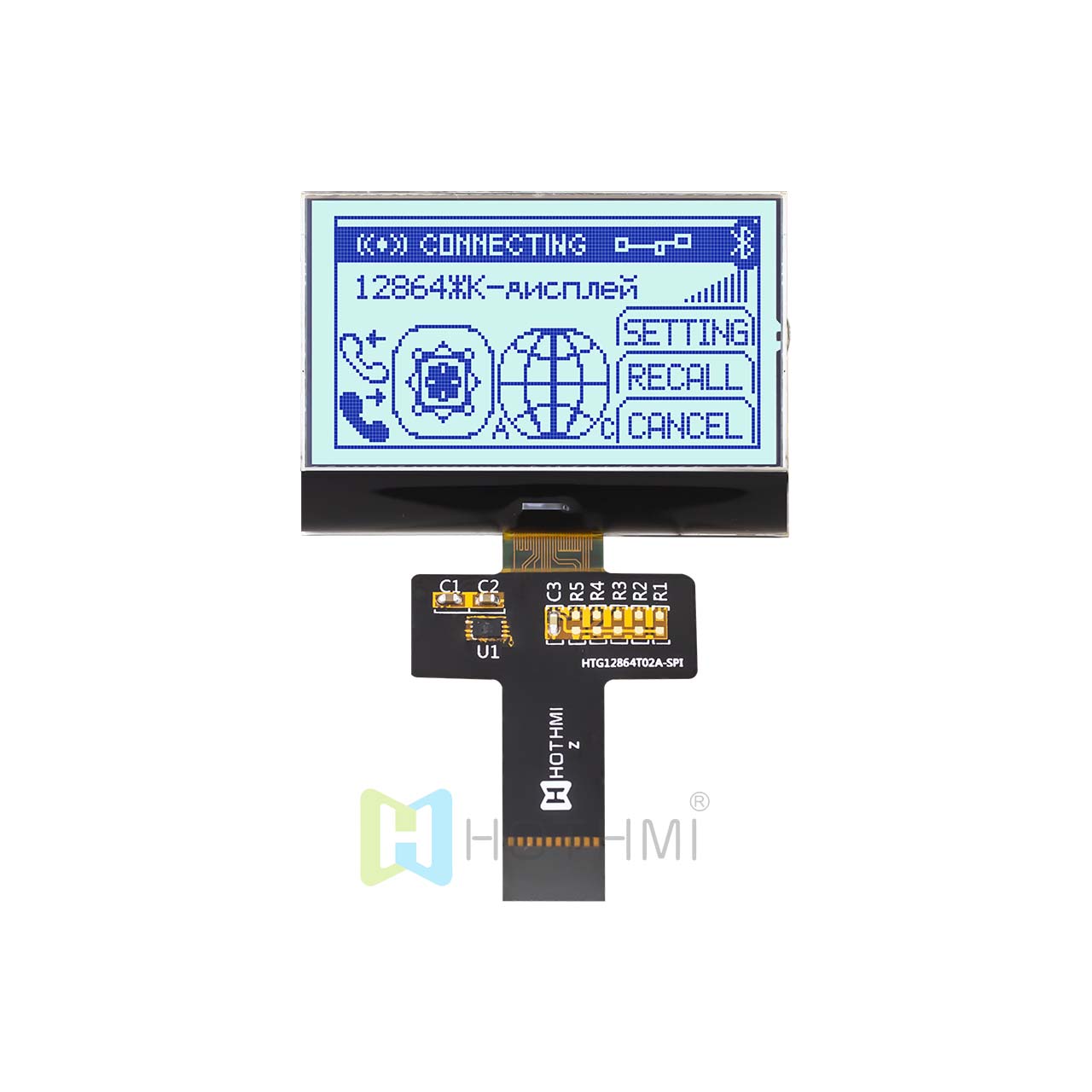

2.2" 128x64 Graphic COG \| STN+ \| Blue on Gray \| SPI \| ST7567 \| Arduino HTG12864T02A-11W--SPI-FONT	COG	128x64	53.2x37.8x2.8	49.2x27.0	40.92x24.28	0.38x0.32	6H		FPC-10PIN	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567

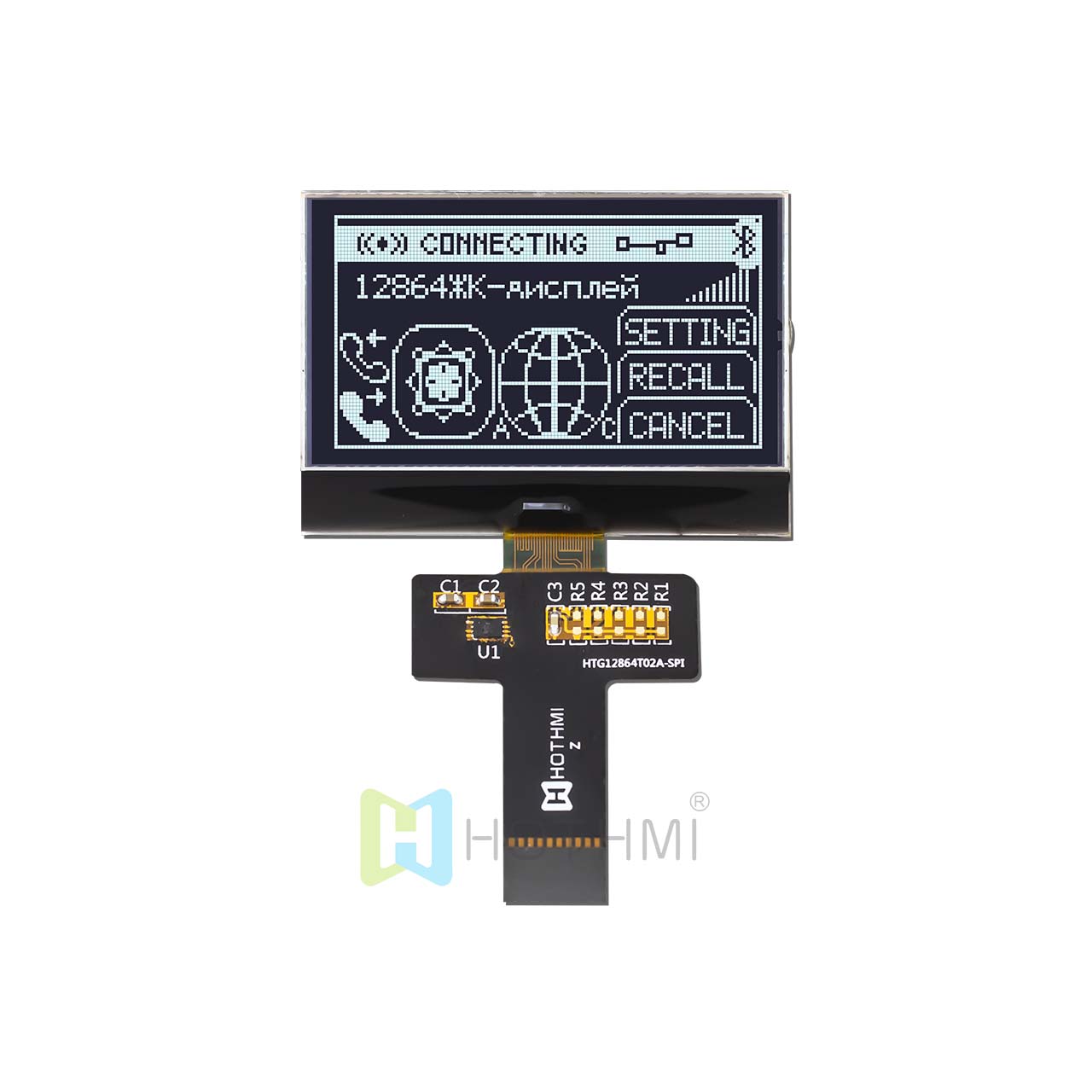

2.2" 128x64 Graphic COG \| DFSTN- \| White on Black \| SPI \| ST7567 \| Arduino HTG12864T02A-41W--SPI-FONT	COG	128x64	53.2x37.8x2.8	49.2x27.0	40.92x24.28	0.38x0.32	6H		FPC-10PIN	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567
2.2" 128x64 Graphic COG \| FSTN+ \| Gray on White \| SPI \| ST7567 \| Arduino HTG12864T02A-31W--SPI-FONT	COG	128x64	53.2x37.8x2.8	49.2x27.0	40.92x24.28	0.38x0.32	6H		FPC-10PIN	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567

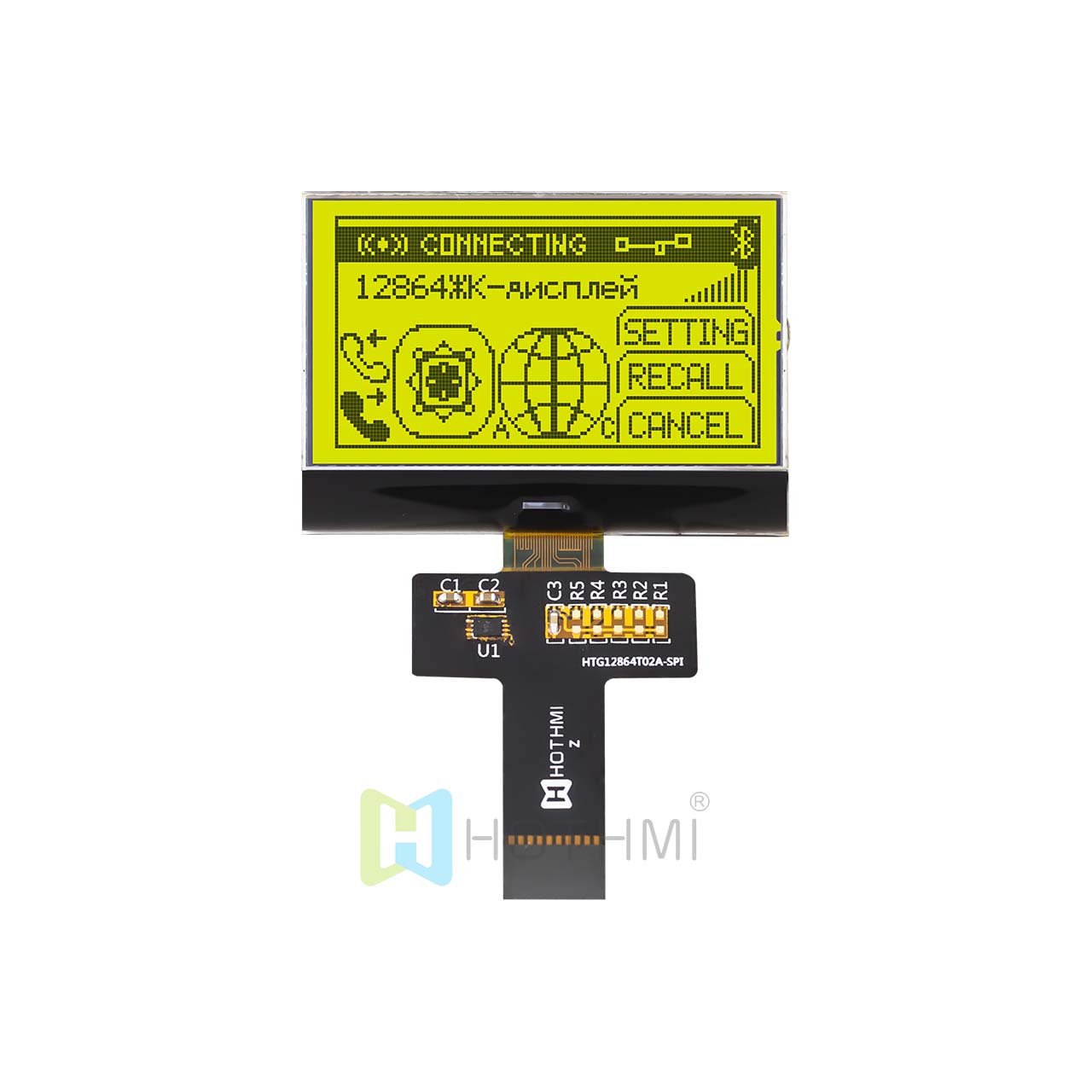

2.2" 128x64 Graphic COG LCD \| STN+Yellow-Green Backlight \| SPI \| ST7567 \| Arduino HTG12864T02A-01Y--SPI-FONT	COG	128x64	53.2x37.8x2.8	49.2x27.0	40.92x24.28	0.38x0.32	6H		FPC-10PIN	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	-20~70℃
2.0-inch 128x64 RGB backlight COG LCD display \| FSTN+\| Transmissive polarizer \| Arduino HTG12864-132-35S-30C05-V01	COG	128x64	50.2x39.2x6	44.0x29.0	40.93x24.93	0.39x0.32	6H		FPC-30PIN	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567A
2.0-inch 128x64 COG LCD \| STN-Blue background white text LCD \| Transmissive polarizer HTG12864-132-25W-30C05-V01	COG	128x64	50.2x39.2x6	44.0x29.0	40.93x24.93	0.39x0.32	6H		FPC-30PIN	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567A
2.0-inch 128x64 COG LCD \| STN+ Yellow-green LCD \| Arduino HTG12864-132-11Y-30C05-V01	COG	128x64	50.2x39.2x6	44.0x29.0	40.93x24.93	0.39x0.32	6H		FPC-30PIN	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567A
2.0英寸128x64 COG LCD液晶顯示屏 \|STN+ 灰底藍(lán)字LCD \| Arduino HTG12864-132-11W-30C05-V01	COG	128x64	50.2x39.2x6	44.0x29.0	40.93x24.93	0.39x0.32	6H		FPC-30PIN	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567A
2.0 inch 128x64COG LCD display \| FSTN+ gray background black text LCD \| industrial control display HTG12864-132-31W-30C05-V01	COG	128x64	50.2x39.2x6	44.0x29.0	40.93x24.93	0.39x0.32	6H	YG	FPC-30PIN	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567A
2.0 inch 128x64 yellow-green COG display \| STN+ LCD \| Industrial control display HTG12864-132-01Y-30C05-V01	COG	128x64	50.2x39.2x6	44.0x29.0	40.93x24.93	0.39x0.32	6H		0.39x0.32	SPI	Anti-static ESD 8KV	-20~70℃	+3.3V	ST7567A
