With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

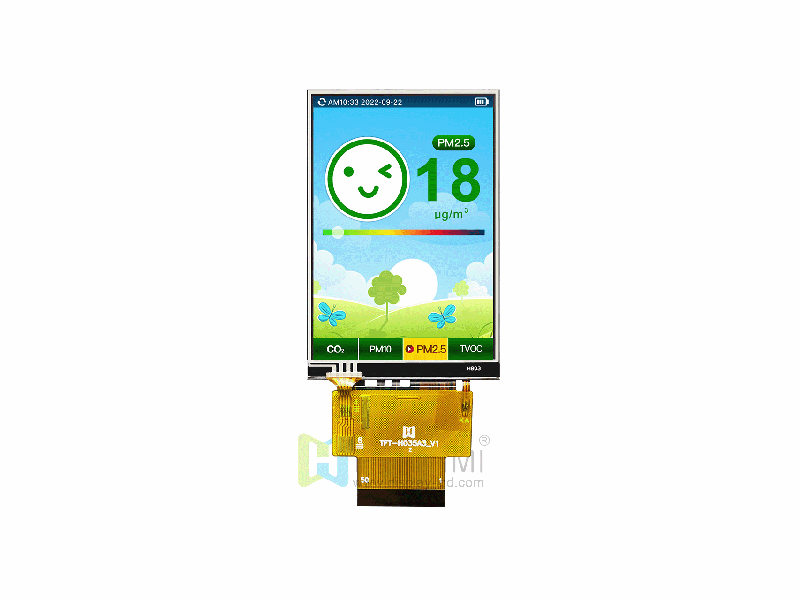

| 3.5-inch 320x480 IPS resistive touch TFT LCD/FPC/ST7796S controller/Arduino/STM32 | TFT | 320x480 |
|
55.66X85.04X3.55 | 3.5 | 3.5 | 48.96X73.44 | 48.96X73.44 | Multiple interface compatibility | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7796S | |||

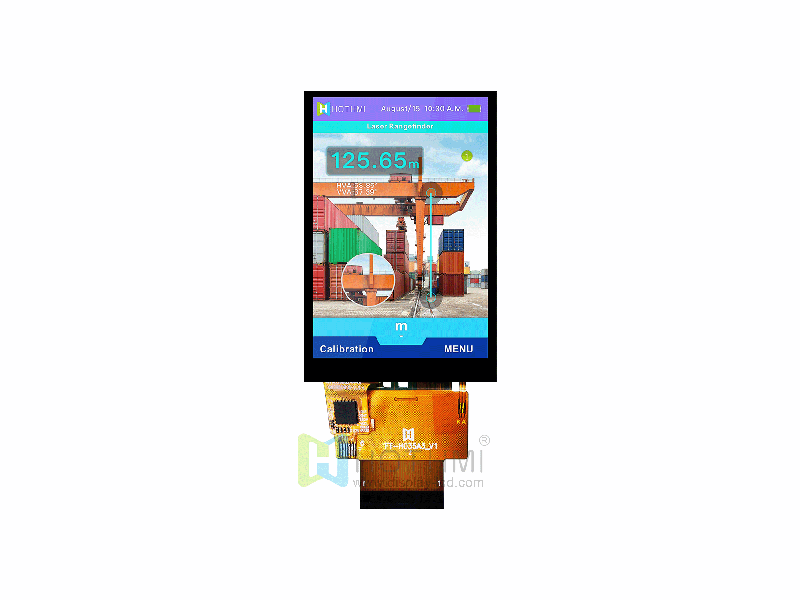

| 3.5-inch 320x480 IPS display/TFT LCD with capacitive touch/multiple interface compatible/ST7796S controller TFT-H035A3HVIST4C50 | TFT Display | 320x480 |
|
54.76x83.58x3.95 | 3.5 | 3.5 | 54.76x83.58x3.95 | 48.96x73.44 | Multiple interface compatibility | IPS | -20~70℃ | +3.3V | ST7796S | |||
| 15.6-inch 1920x1080 IPS TFT color capacitive touch display/industrial LVDS interface/Linux/industrial control/RK | TFT | 1920x1080 |
|
386.8x236.07x13.22 | 15.6 | 15.6 | 344.16x193.59 | IPS | 850cd/m2 | FPC-30 pin | MCU | Anti-static ESD 8KV | -30~85℃ | +3.3V | -30~85℃ | |
| 3.2-inch 240x320 IPS TFT resistive touch color display/industrial MCU interface/C8051/STM32 TFT-H032A3QVTST3R40 | TFT | 240x320 |
|
54.34x77.7x3.6 | 3.2 | 3.2 | 48.6x64.8 | 300cd/m2 | MCU | Anti-static ESD 8KV | -20~70℃ | +2.8 V | ST7789V | |||
| 3.2-inch 240x320 IPS TFT/MCU interface/ST7789V controller/plug-in FPC/Arduino/C8051/STM32 TFT-H032A3QVTST3N40 | TFT | 240x320 |
|
54.34X77.7X2.4 | 3.2 | 3.2 | 48.6X64.8 | IPS | 350cd/m2 | FPC-40 pin | MCU | Anti-static ESD 8KV | -20~70℃ | +2.8 V | ST7789V | |
| 7.8" TFT LCD Display Module | 400x1280 RGB TFT Screen | NV3051 TFT-H078A03ZAINV7N40 | TFT Display | FPC-40PIN |
|
65.2x201.18x3.3 | 7.8 | 7.8 | 59.40x190.08 | IPS | 700cd/m2 | FPC-40PIN | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | NV3041 | |
| 2.4 inch 240x320 IPS TFT LCD/MCU interface/C8051/Arduino/STM32/ST7789TFT-H024B25QVTST4N40 | TFT Display | 240x320 |
|
42.72.0x60.26x2.3 | 2.4 | 2.4 | 36.72x48.96 | IPS | 400cd/m2 | FPC-40 pin | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7789<TFT> | |
| 4.0-inch 480x800 IPS TFT LCD/ST7701S/STM32/RK series TFT-H040A19WVIST5N40 | TFT | 480x800 |
|
57.14x96.85x2.00 | 4.0 | 4.0 | 51.84x86.4 | IPS | 500cd/m2 | FPC-40 pin | RGB | Anti-static ESD 8KV | -20~70℃ | 3.3V | -20~70℃ | |
| 3.5-inch 640x480 full-color IPS display/TFT LCD with glass cover/ST7703 controller TFT-H035B20VGIST4G30 | TFT | 640x480 |
|
79.5x67.2x4.75 | 3.5 | 3.5 | 70.08X52.56 | IPS | 400cd/m2 | FPC-30 pin | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3 V | ST7703 | |
| 720X720 4.0-inch Square Capacitive Touch Display/Square TFT LCD/Plug-in FPC TFT-H040B24ZKIST3C30 | Square TFT | 720x720 |
|
84.0x84.0x4.31 | 4.0 | 4.0 | 71.928x71.928 | U85/D85/R85/L85(Typ.) | 71.928x71.928 | MIPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7703<TFT>,GT911<CTP> |
