With the wide application of human-machine interface, the display content is gradually rich and colorful, and there are higher requirements for display definition, viewing angle range width and working temperature. The common TFT viewing angle range of 50° on the market and the operating temperature of -20 to +70 °C can no longer meet the needs of users. Therefore, Xin Hongtai Company has launched a series of wide-view TFT display screens, which can reach the viewing angle of 80° or more in both the up, down, left and right directions, and the HD perfect quality display with almost full viewing angle. Most wide viewing angle TFT displays The operating temperature is also increased to -30~+80°C.
| Checklist | Model | Product type | Show contents | Product map |
Outline size (mm) |
Horizon (mm) |
Display size mm/inch |
Effective size mm |
Visual angle | Brightness | Pin | Interface | Instructions | Working temperature | Voltage | Driver chip model |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

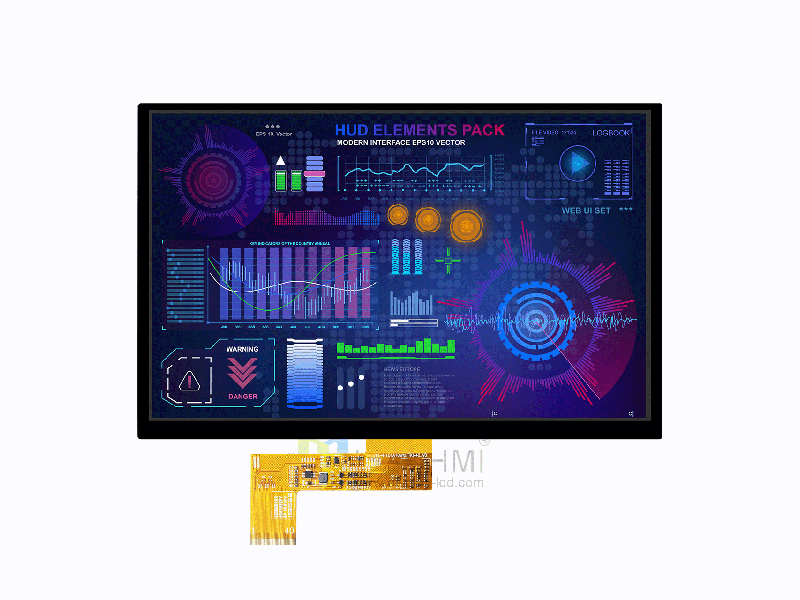

| 10.1-inch 1280x800 High Brightness Color TFT LCD/LVDS Interface/EK79202B1 TFT-H101A10WXIFTKN40 | TFT Display | 1280x800 |
|
229.1x148.9x4.35 | 10.1 | 10.1 | 216.96x135.6 | IPS | 1000cd/m2 | FPC-40PIN | FPC-40PIN | Anti-static ESD 8KV | -20~70℃ | +3.3V | EK79202B1 | |
| 3.5-inch 640x480 color TFT LCD/MIPI interface/ultra-wide temperature LCD display/ST7703 TFT-H035B20VGIST4N30 | TFT Display | 640x480 |
|
76.9x63.9x2.95 | 3.5 | 3.5 | 70.08x52.56 | IPS | 450cd/m2 | FPC-30PIN | MIPI | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7703 | |
| 3.5" 320x480 IPS TFT LCD/MCU ??Interface/ST7796 Controller/STM32/C8051/Arduino/Sunlight Viewable TFT-H035A12HVISTKN40 | TFT Display | 320x480 |
|
54.5x83x2.3 | 3.5 | 3.5 | 48.96x73.44 | 1000cd/m2 | FPC-40PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7796 | ||
| 2.4-inch 240x320 IPS Mini TFT LCD Display/SPI/ST7789V Controller/C8051/Arduino/STM32 TFT-H024C4QVIST5N14 | TFT Display | 240x320 |
|
42.52x59.86x2.2 | 2.4 | 2.4 | 36.72x48.96 | IPS | 500cd/m2 | FPC-14PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +3.3V | ST7789V | |
| 1.1-inch IPS Mini LCD Display/135x240 Resolution/SPI Interface/ST7789H2 TFT-H011A1QCIST3N10 | TFT Display | 135x240 |
|
17.6x31x1.65 | 1.1 | 1.1 | 14.8635x24.9120 | IPS | 350cd/m2 | FPC-10PIN | SPI | Anti-static ESD 8KV | -20~70℃ | +2.8 V | ST7789H2 | |

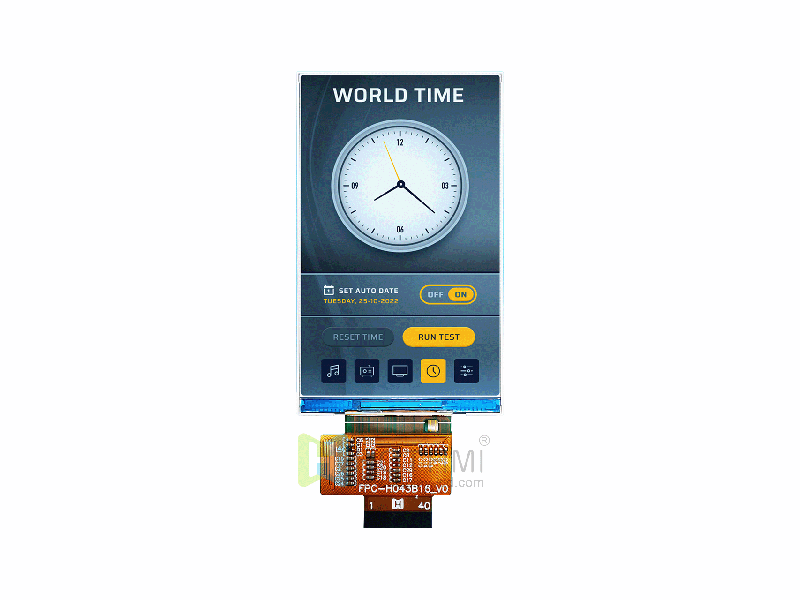

| 4.3" IPS TFT LCD/480x800 display/MCU interface/40 PIN FPC/NT35510/C8051/Arduino/STM32 TFT-H043B16WVINT4N40 | TFT Display | 480x800 |
|
60.86x102.57x2.3 | 4.3 | 4.3 | 56.16x93.6 | IPS | 400cd/m2 | FPC-40PIN | MCU | Anti-static ESD 8KV | -20~70℃ | +3.3V | NT35510 | |

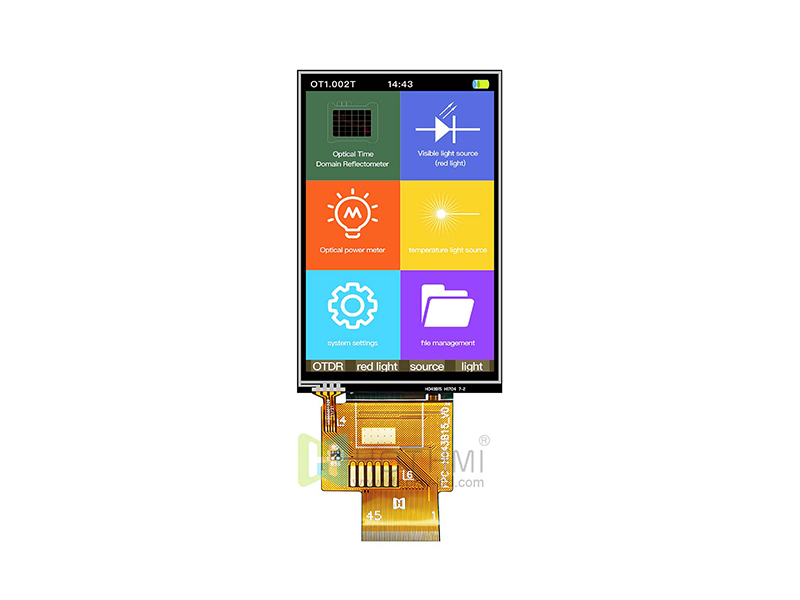

| 4.3" 480x800 IPS TFT LCD/Resistive Touch Screen/TTL RGB Interface/40-pin FPC/ST7701S TFT-H043B15WVIST3R45 | TFT Display | 480x800 |
|
60.86x102.57x3.65 | 4.3 | 4.3 | 56.16x93.6 | IPS | 350cd/m2 | FPC-45PIN | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | ST7701S | |

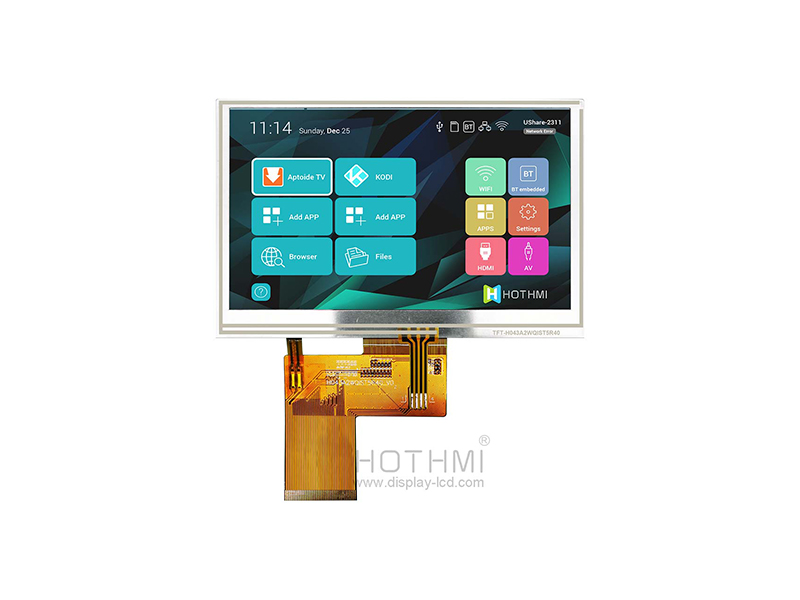

| 4.3" resistive touch display/480x272 IPS TFT LCD/TTL RGB interface/SC7283 controller TFT-H043A2WQIST5R40 | TFT Display | SC7283 |
|
105.5x 67.2x4.2 | 4.3 | 4.3 | 95.04x53.86 | IPS | 500cd/m2 | FPC-40PIN | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | SC7283 | |

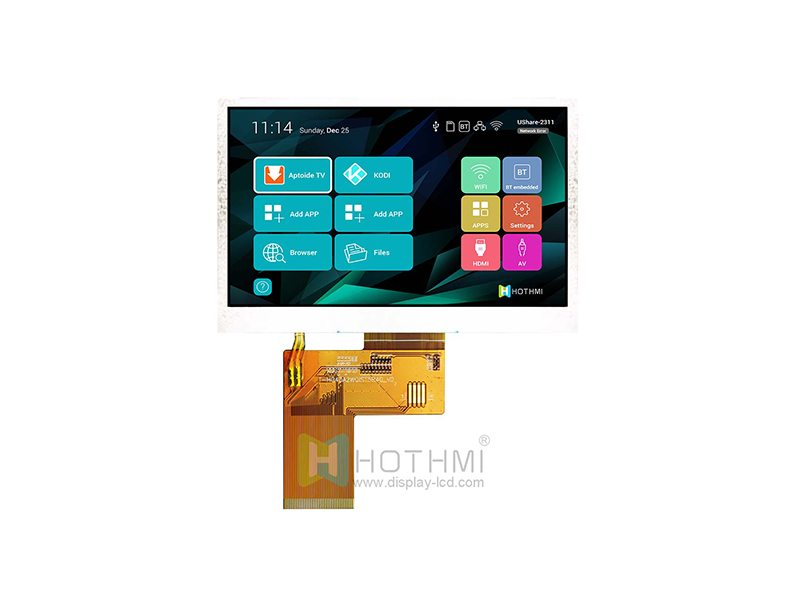

| 4.3"High Brightness TFT LCD Display/480x272IPS TFT LCD Display/RGB Interface TFT-H043A2WQISTKN40 | TFT Display | 480x272 |
|
105.42x 67.07x3.0 | 4.3 | 4.3 | 95.04x53.86 | IPS | 1200cd/m2 | FPC-40PIN | RGB | Anti-static ESD 8KV | -30~80℃ | +3.3V | SC7283 | |
| 5.6" 640x480 TFT LCD module/MIPI interface/30-pin FPC connection/optional capacitive/resistive touch LCM-TFT056T1VGM2N30F-RTP | TFT Module | 640x480 |
|
126.5x100x9.5 | 5.6 | 5.6 | 112.9x84.67 | IPS | 250cd/m2 | FPC-30 PIN | MIPI | Anti-static ESD 8KV | -20~70℃ | 5.0V |
