Location：Home  >  Product center  >  TFT display  >  TFT display standard products | Full-view TFT color screen | High-brightness series TFT  >  10.1寸TFT橫屏|1024*600寬視角IPS|LVDS接口|厚度3.0普通亮度|TFT-H101A4WSIFT3N40

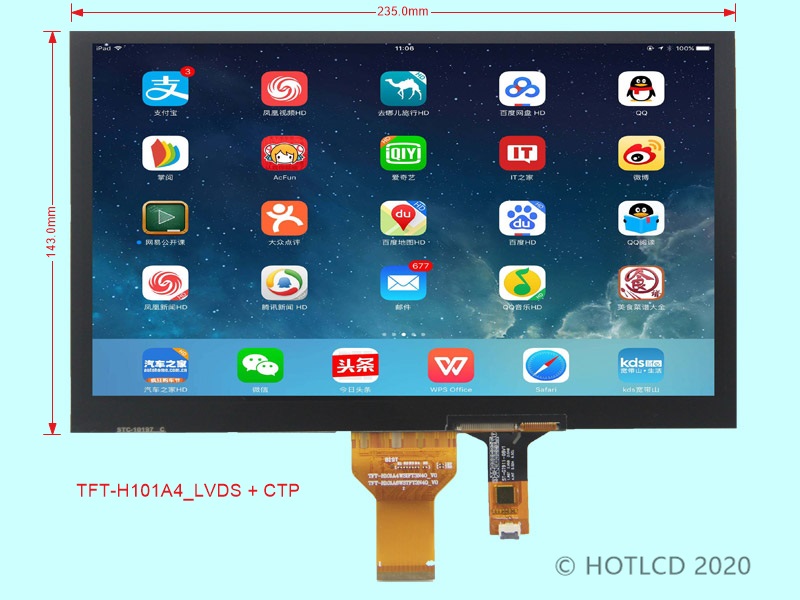

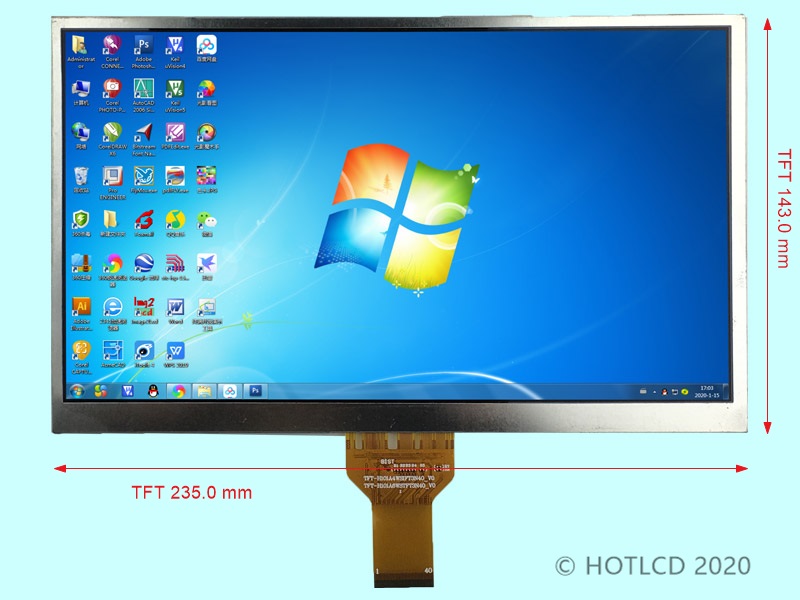

  • Model : 10.1 inch TFT horizontal screen|1024*600 wide viewing angle IPS|LVDS interface|thickness 3.0 ordinary brightness|TFT-H101A4WSIFT3N40

    Product type：TFT LCD

    Show contents：1024x600

    Outline size(mm) ：235.0x143.0x3.0

    Size of View Window(mm)：10.1

    Display size(mm) ：10.1

    Effective size(mm)：222.72x125.28

    Product application：TFT LCD

    Visual angle：FULL VIEW

    Backlight type or brightness：300cd/m2

    Connection PIN Number：FPC-40PIN

    Interface mode：LVDS

    Working temperature：-20~70℃

    Power supply voltage：3.3v

    Driver chip model：EK79001+EK73215

Product description

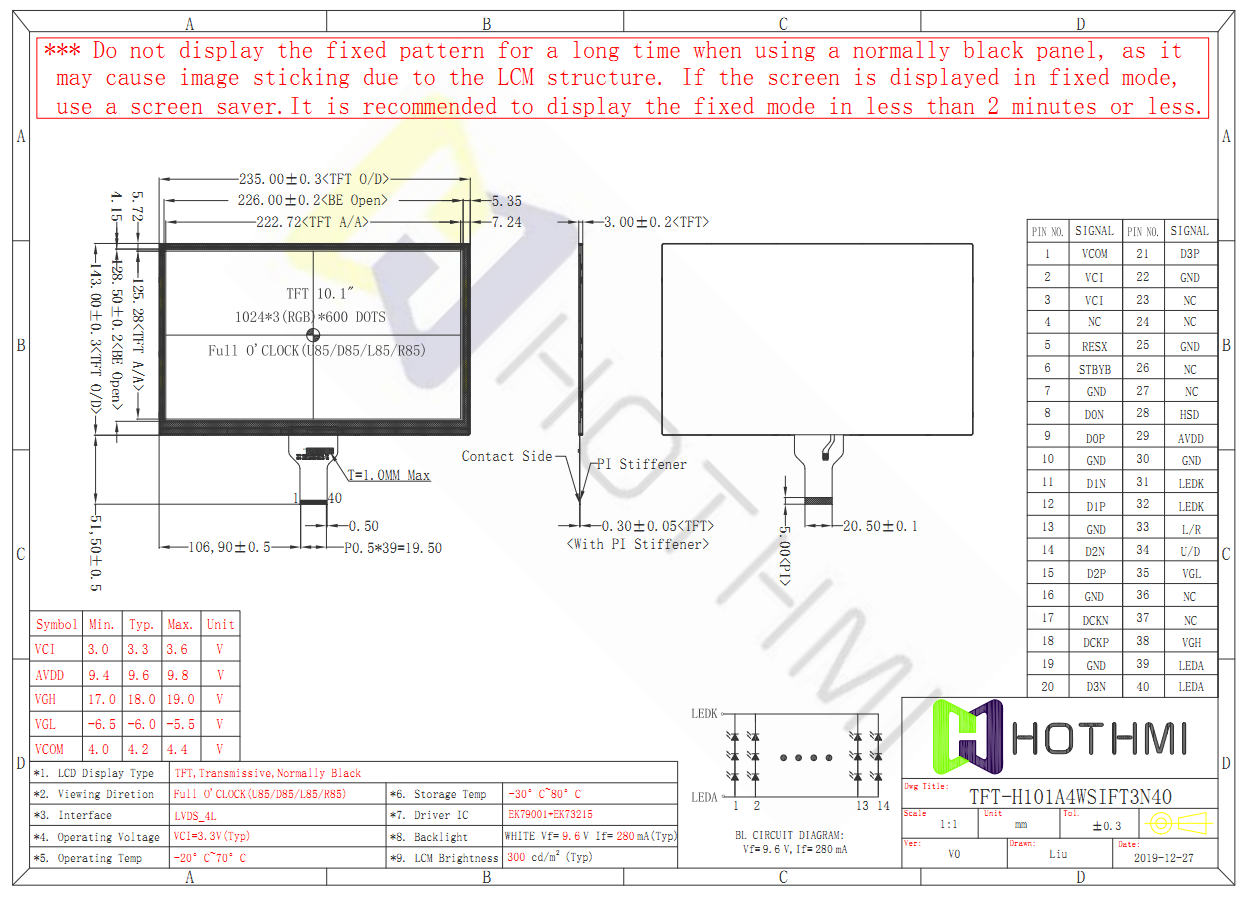

10.1 inch TFT horizontal screen|1024*600 wide viewing angle IPS|LVDS interface|thickness 3.0 ordinary brightness|TFT-H101A4WSIFT3N40image.png
