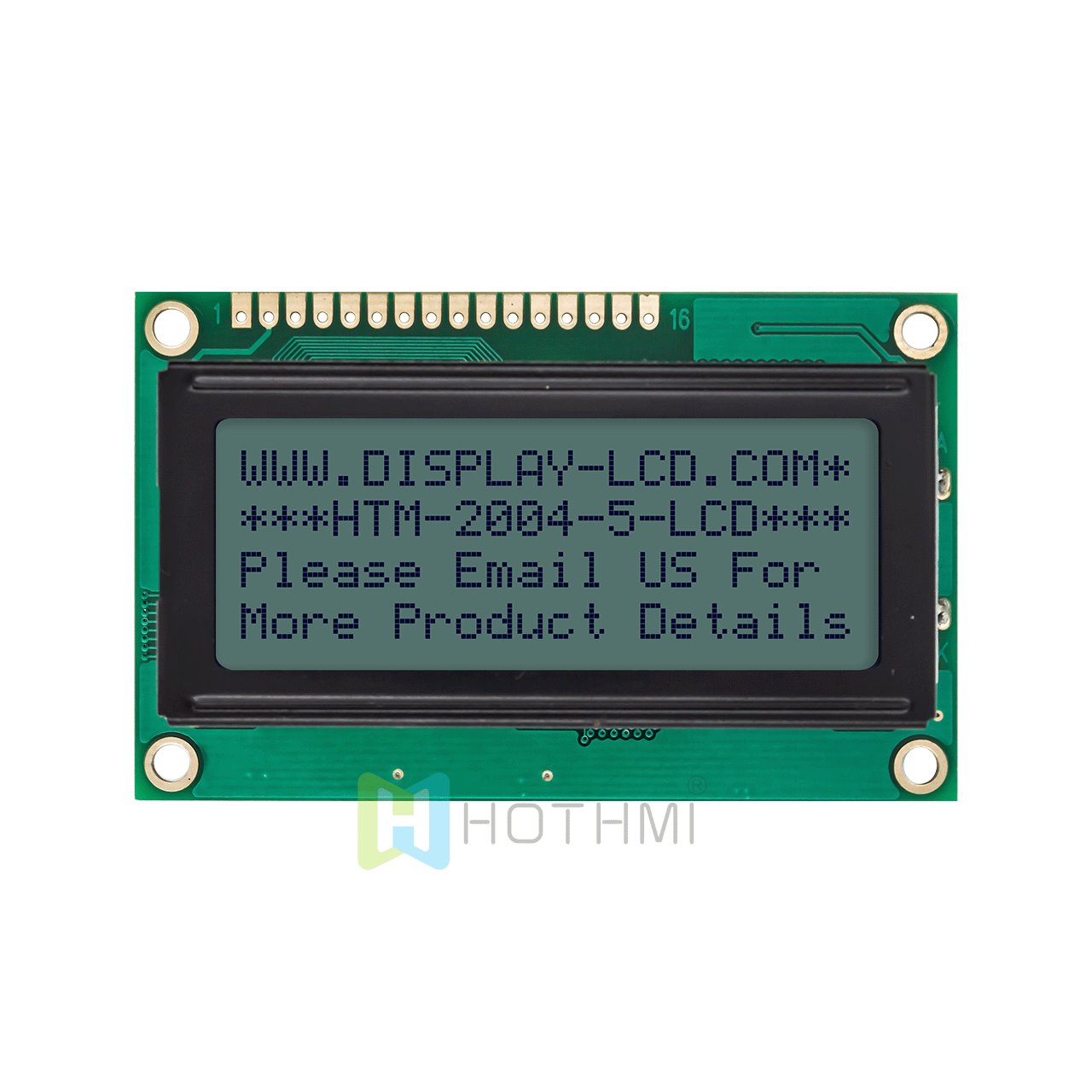

Model : 4X20 monochrome character LCD module/STN positive display/transflective LCD display HTM-2004-5-11Y-A5P

Product type：Character LCD Module

Show contents：20x4

Outline size(mm) ：77.0x47.0x14.7

Size of View Window(mm)：60.0x22.2

Display size(mm) ：55.12x17.56

Point spacing(mm)：0.47 x 0.51

Product application：Instruments

Visual angle：6H

Backlight type or brightness：white

Connection PIN Number：16PIN

Interface mode：MCU

Special instructions：Anti-static ESD 8KV

Working temperature：-20~70℃

Power supply voltage：5.0V

Driver chip model：ST7066U
PDF download
- HTM-2004-5-11Y-A5P

Product description

HTM-2004-5-11Y-A5P/4X20 monochrome character LCD module/STN positive display/white backlight/Arduino/transflective LCD display/5.0v

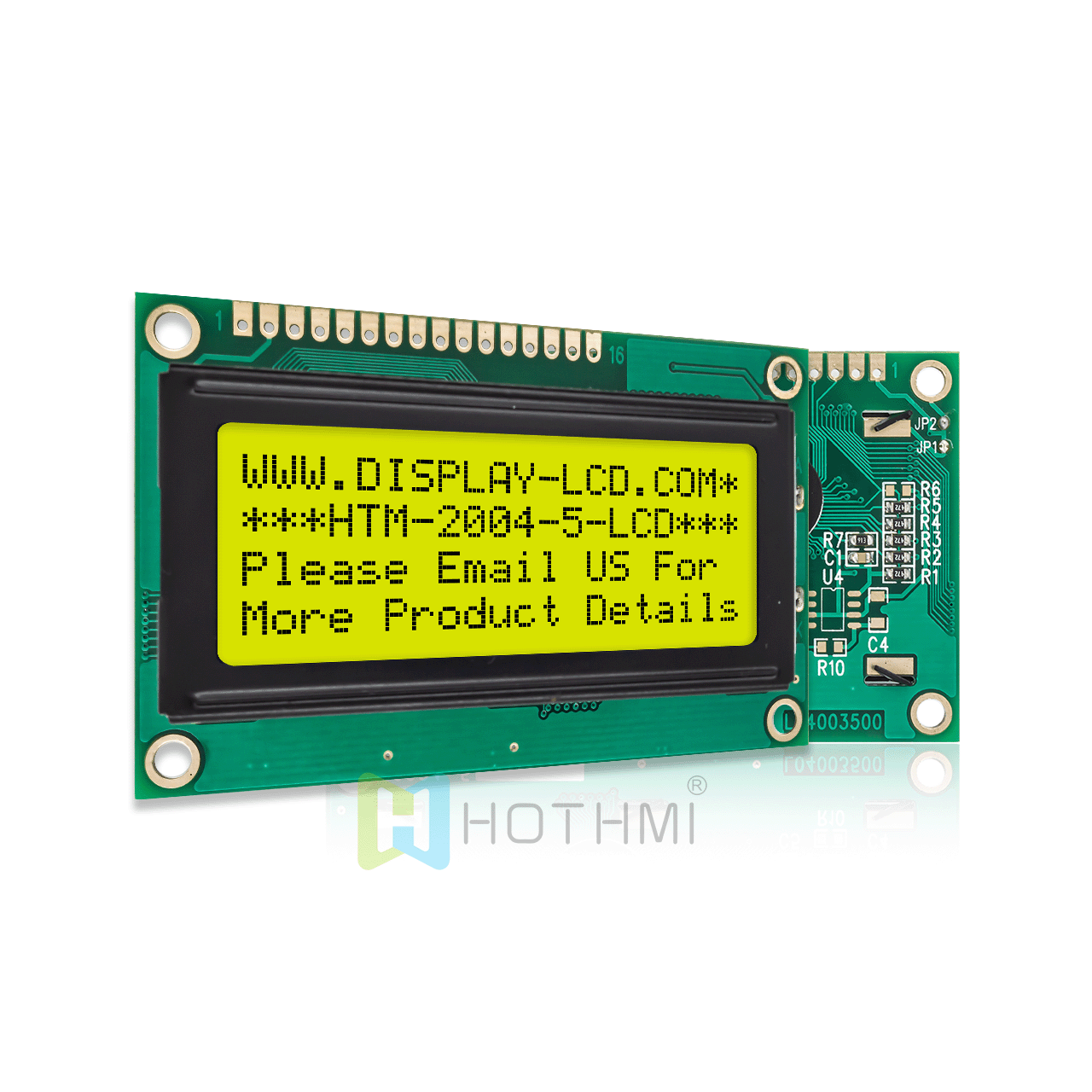

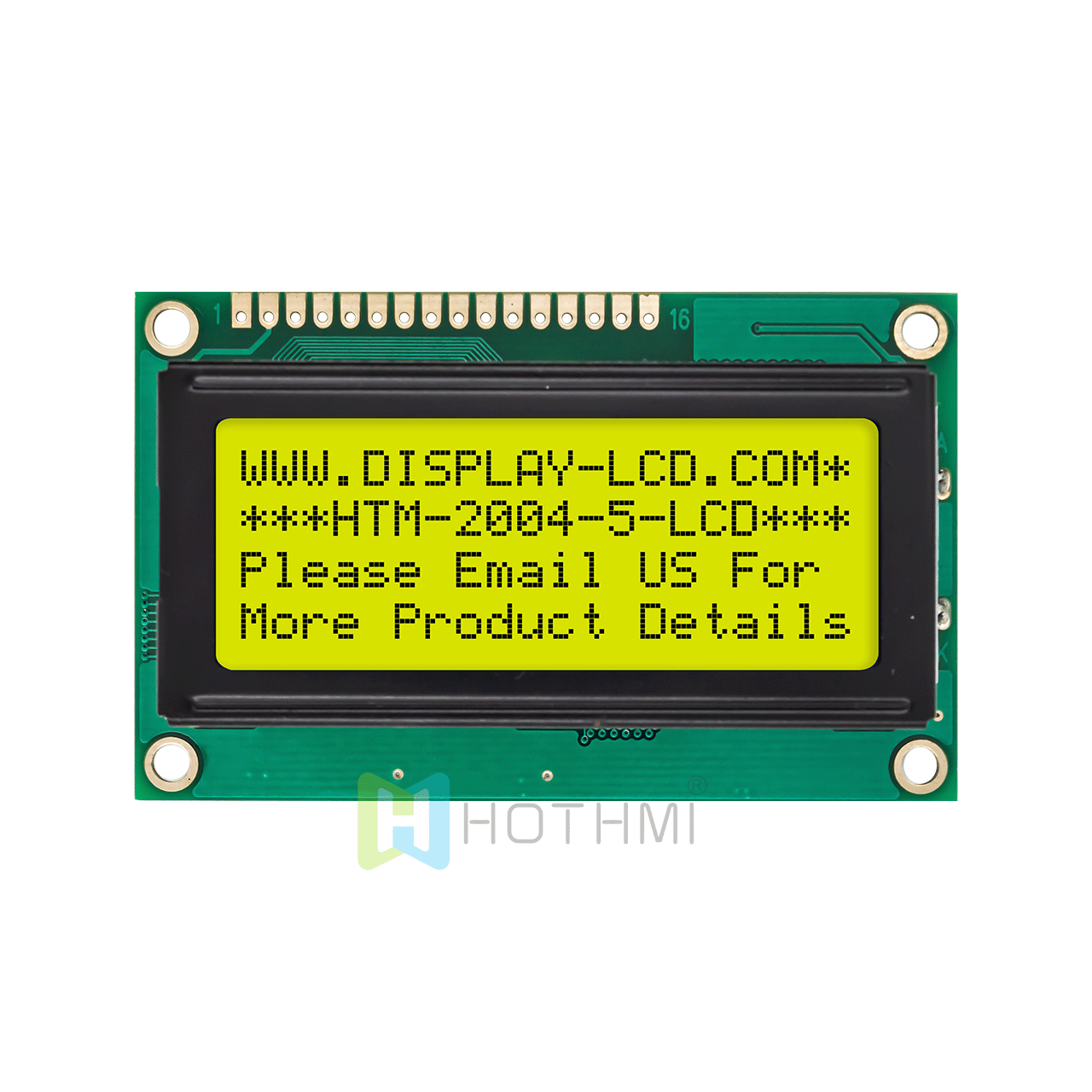

HTM-2004-5-11Y-A5P is a 20 character wide, 4 line character LCD module, st7066u controller, contains a yellow-green single LED backlight, which can be easily dimmed using resistors or PWM, STN+ display LCD, wide operating temperature range, ROHS compliant, built-in character set supports English/Japanese/Russian text, see ST7066U datasheet for the full character set. Optional pin header connections, 5V or 3.3V power supply and I2C adapter board for arduino are available. It can be easily controlled by MCUs such as 8051ARDUINO. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.
